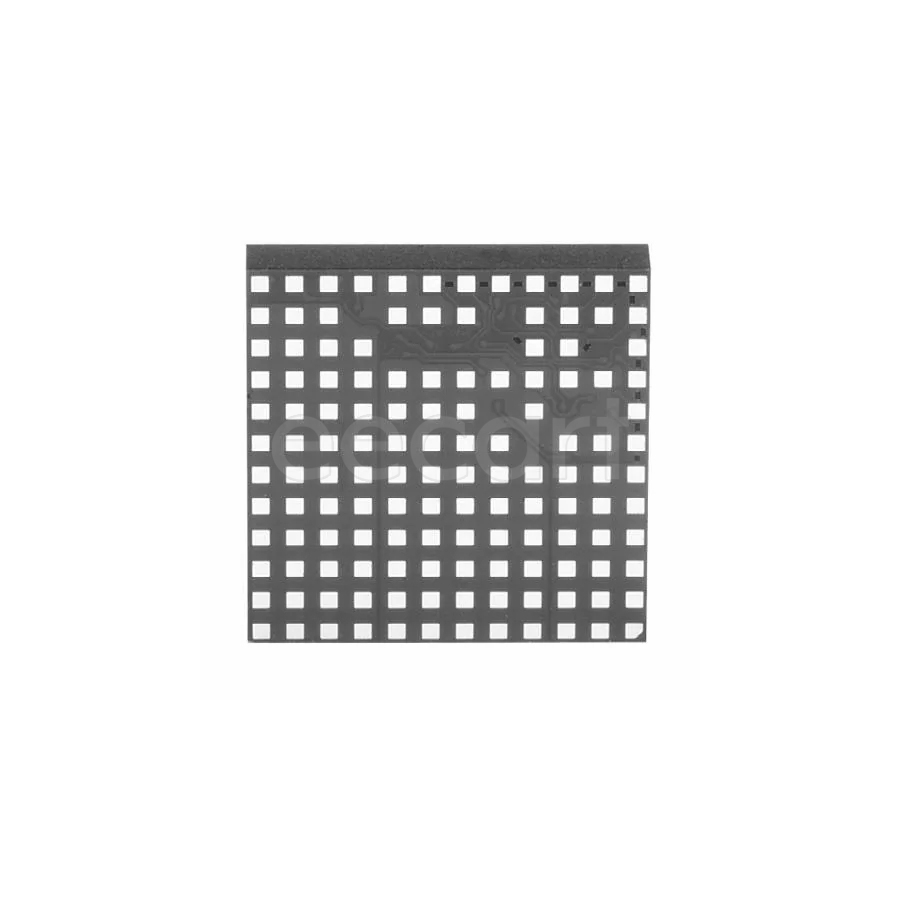

LTM4606EV#PBF
Manufacturer:
Analog Devices
Mfr.Part #:
LTM4606EV#PBF
Datasheet:
Description:
Voltage Regulators - Switching LGA-133 SMD/SMT Buck 5 V
| Parameter | Value |
|---|---|
| Length | 14.986 mm |
| Width | 14.986 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 133 |
| Height | 2.794 mm |
| Packaging | Tray |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | OVP, SCP, UVLO |
| Frequency | 800 kHz |
| Dropout Voltage | 5 V |
| Min Input Voltage | 4.5 V |
| Output Current | 6 A |
| Output Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Output Current | 6 A |
| Number of Channels | 1 |
| Operating Supply Current | 1.5 mA |
| Switching Frequency | 800 kHz |
| Max Input Voltage | 28 V |
| Number of Outputs | 1 |
| Efficiency | 93 % |
| Voltage - Output 1 | 5 V |
| Min Output Voltage | 600 mV |
| Max Output Voltage | 5 V |
| Schedule B | 8542390000 |
| Topology | Buck |
| Quiescent Current | 22 µA |
Stock: 410
Distributors
pcbx
pcbxUnit Price$21.41863
Ext.Price$21.41863
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $21.41863 | $21.41863 |
| 10 | $20.28846 | $202.88460 |
| 25 | $19.85365 | $496.34125 |
| 50 | $19.53070 | $976.53500 |
| 100 | $19.13354 | $1913.35400 |
